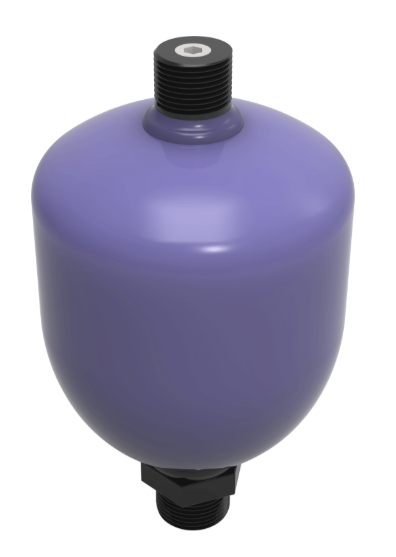

Accumulator is a device used specifically for storage of liquid under pressure. As liquids, for all practical purposes, are incompressible, this objective is achieved by utilizing the compressibility of gases. A flexible rubber separator i.e., diaphragm is fitted into the accumulator shell. An inert gas – nitrogen – is filled into the diaphragm through a pressure valve to a pressure P . The diaphragm expands, filling the entire volume V of the accumulator shell. When the system (circuit) pressure P is higher than the gas 1 precharge pressure P , the liquid enters the shell and the diaphragm is compressed reducing the gas volume to V .1 Should the liquid pressure rise to P , the volume of gas 2 reduces to V with an attendant rise in pressure, thus 2 balancing the Liquid pressure. A potential energy is now stored in the accumulator to be utilized whenever needed.
SPECIFICATION
Material of Construction
Body : Carbon Steel-Painted or Low Temp Carbon Steel or Stainless Steel.
Diaphragm : Nitrile(NBR) or Epichlorohydrin(ECO) orViton (FKM). Others on request.
Diaphragm Plug : Plastic (Standard) or CS or SS. Connections
Gas Side : M28x1.5(M) or Dia 8 or 5/16” UNEF/Vg8. Others on request.
Fluid Side : Female Threaded or Combination Thread (M+F) or SAE Ports. Others on request.
